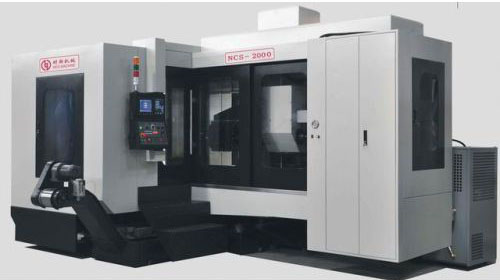

NCS2000 3-Axis Gun Drilling Machine
Description:
The 3-axis deep hole drilling machine is widely used in mold processing. With drill depth 2000mm, it is especially suitable for deep-hole processing. It is featured by high precision and high productivity.
Features:
- 1. Easy operation and maintenance
3-axis deep hole drilling machine has steady performance and it is convenient to operate and maintain with MITSUBISHI servo numerical control system. - 2. It has compact structure with comparatively low height of table and enough size of table.
- 3. It adopts magnetic motor and automatic locking in case of power off during rolling;
- 4. 3-axis deep hole drilling machine is characterized by safety, reliability, high working efficiency.
- 5. Its main parts are from famous professional manufacturers and are reliable.
- 6. 3-axis deep hole drilling machine adopts original import pieces as electric components.
Parameter:
Type | NCS2000 3-axis deep hole drilling machine |
Bore of drill hole | φ3-35mm |
Maximum depth of one-off drill hole | 2000mm |
Dimension of work platform | 1400x2600mm |
X axis stroke | 2500mm |
Y axis stroke | 1400mm |
Z axis stroke | 2050mm |
Rapid feeding | 5000mm/min |
Maximum rotary sped of spindle | 6000rpm |
Spindle power | 11kw |
XYZ servo motor power | XYZ servo motor power: 3kw/3kw/2.0kw |
Pressure of cutting oil pump | 100kg/cm2 |
Oil pump capacity of oil hydraulic pump | 8-52L/min |
Capacity of cutting oil tank | 400L |
Load weight of work platform | 15000kg |
Net weight of equipment | 22000kg |
External size of machine tool | 7000x6200x3500mm |
Total power | 42kw |
Numerical control system | MITSUBISHI |
Accessories for 3-axis deep hole drilling machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
