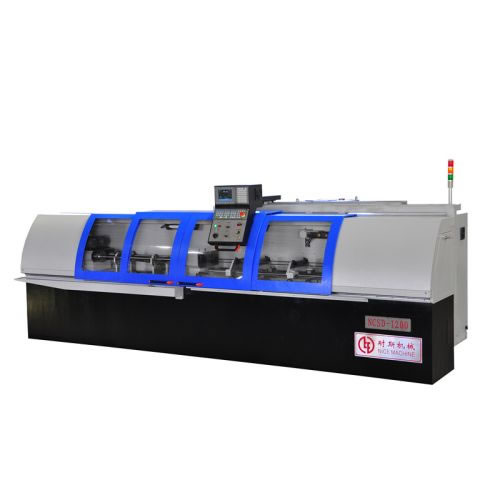

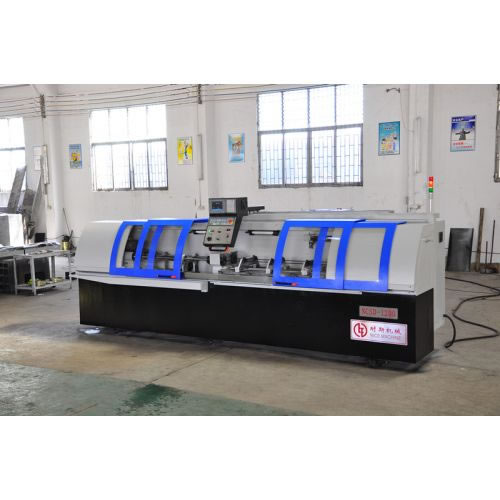

NCSD2Z1200 2-Axis Gun Drilling Machine

Description:

NCSD2Z1200 2-axis deep hole drilling machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. Its drill depth reaches 1200mm. NCSD2Z1200 2-axis deep hole drilling machine can make the deep-hole processing efficient, precise as well as fine surface finish.

Features:

1. Wide work space facilitates the clamping and processing of large workpiece.
2. NCSD2Z1200 2-axis deep hole drilling machine is featured by steady performance, simple operation as it adopts MITSUBISHI servo numerical control system.

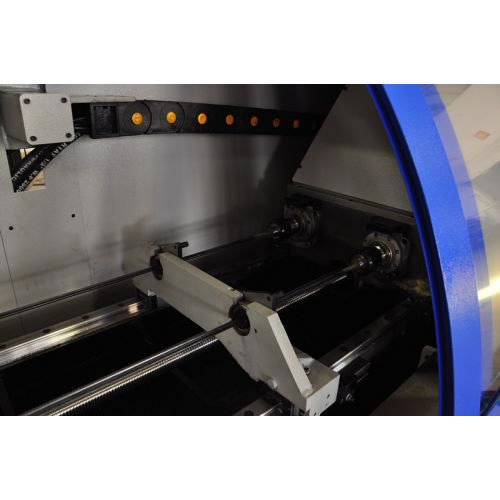

3. The imported linear guide rail and ball screw are adopted in machine tool so as to ensure the processing precision.
4. NCSD2Z1200 2-axis deep hole drilling machine is a professional machine for deep hole processing. It makes it efficient, precise drilling regard less of fine surface finish.

Parameter:

Model	NCSD2Z1200 2-axis deep hole drilling machine
Diameter scope of gun drill	φ2-22mm
Maximum drill hole depth	1200mm
Height from the main shaft center to the work bench	200mm
Maximum diameter of workpiece	72mm
Maximum length of workpiece	1300mm
Rotating speed of main shaft	6000rpm
Feeding speed of main shaft	0-1000mm/min
Movement speed of main shaft	0-5000mm/min
Rotating speed of workpiece	60rpm
Motor power of main shaft	7.5kw
Power of workpiece rotating motor	0.37x2kw
Total power of machine tool	30kw
Pressure scope of cooling liquid	3-10.5mpa
External size of machine tool	5800x2000x1800mm
Flow rate scope of cooling liquid	0-64L/min
Total weight of machine tool:	4.5T
Machine tool control system	MITSUBISHI
