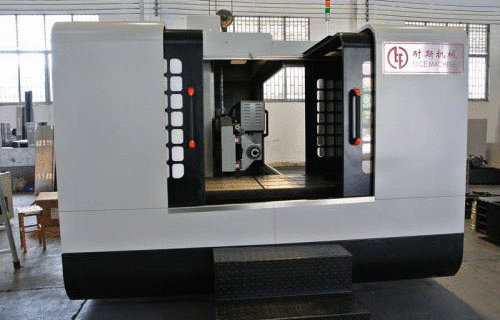

NCS1000 3-Axis Gun Drilling Machine
Description:
NCS1000 3-spindle gun hole machine is widely applied in deep hole processing. With 3 axis, the machine greatly improve the work efficiency. Besides, its drill depth reaches 1000mm. On the basis of absorbing essence of similar products, NCS1000 3-spindle gun hole machine is developed by our company.
Features:
- 1. NCS1000 3-spindle gun hole machine adopts imported linear guide rail and ball screw so as to ensure the processing precision.
- 2. The stand column, pedestal, slide platform, work platform and other main components of machine tools are made of castings with low deformation and high precision.
- 3. NCS1000 3-spindle gun hole machine is featured by steady performance and simple operation as it adopts MITSUBISHI servo numerical control system.
- 4. The wide work space will conducive to clamping and processing of large workpiece.
Parameter:
Type | NCS-1000 3-spindle gun hole machine |
Bore of drill hole | φ3-30mm |
Maximum depth of one-off drill hole | 1000mm |
Dimension of work platform | 800x1200mm |
X axis stroke | 1000mm |
Y axis stroke | 800mm |
Z axis stroke | 1050mm |
Rapid feeding | 3000mm/min |
Maximum rotary sped of spindle | 6000rpm |
Spindle power | 7.5kw |
XYZ servo motor power | 2kw/2kw/1.5kw |
Pressure of cutting oil pump | 100kg/cm2 |
Oil pump capacity of oil hydraulic pump | 8-42L/min |
Capacity of cutting oil tank | 400L |
Load weight of work platform | 5000kg |
Net weight of equipment | 9500kg |
External size of machine tool | 5000x3000x2600mm |
Total power | 30kw |
Numerical control system | MITSUBISHI |
Accessories for NCS-1000 3-spindle gun hole machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
