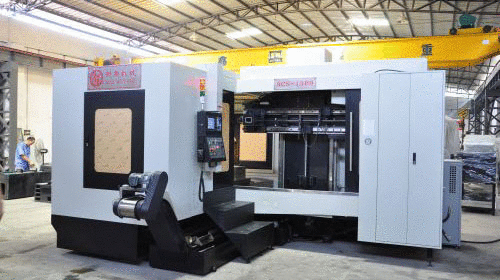

NCS1300 3-Axis Gun Drilling Machine
Description:
The deep hole processing machine can be widely applied in mould processing of water channel hole, punch hole, hot runner hole, hydraulic valve, distributor, heat exchanger plate and others of mould. With 3 shafts, the deep hole processing machine greatly improves work efficiency. The depth of drill hole reaches 1300mm.
Features:
- 1. This gun drilling machine is developed for large mold base of work material and using a column type bed with NC controls. The table affords heavy load.
- 2. The stand column, pedestal, slide platform, work platform and other main components of machine tools are made of castings, with low deformation and high precision.
- 3. deep hole processing machine is featured by steady performance and simple operation as it adopts MITSUBISHI servo numerical control system.
- 4. The wide work space is conducive to the clamping and processing of large workpiece.
Parameter:
Type | NCS1300 deep hole processing machine |
Bore of drill hole | φ3-30mm |
Maximum depth of one-off drill hole | 1300mm |
Dimension of work platform | 950x1400mm |
X axis stroke | 1300mm |
Y axis stroke | 1000mm |
Z axis stroke | 1350mm |
Rapid feeding | 4000mm/min |
Maximum rotary sped of spindle | 6000rpm |
Spindle power | 7.5kw |
XYZ servo motor power | 3kw/3kw/1.5kw |
Pressure of cutting oil pump | 100kg/cm2 |
Oil pump capacity of oil hydraulic pump | 8-42L/min |
Capacity of cutting oil tank | 400L |
Load weight of work platform | 7000kg |
Net weight of equipment | 11000kg |
External size of machine tool | 5400x4100x2900mm |
Total power | 35kw |
Numerical control system | MITSUBISHI |
Accessories for NCS1300 deep hole processing machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
