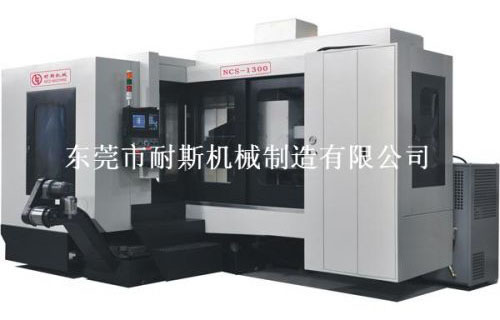

NC1300F 3-Axis Gun Drilling Machine
Description:
NC1300F 3-axis gun drilling machine is widely used to process waterway hole, center hole, hot runner hole, hydraulic valve, distributor and heat exchanger plate, etc. Its depth of drill hole is 1300mm. With high precision and high productivity, NC1300F 3-axis gun drilling machine is an ideal choice.
Features:
- 1. With three spindles, the machine ensures high efficiency and stability of processing.
- 2. NC1300F 3-axis gun drilling machine adopts imported linear guide rail and ball screw to ensure the high precision
- 3. Pump system with large capacity is provided to cover the wide range of machine.
- 4. NC1300F 3-axis gun drilling machine takes operator’s safety, machine aesthetics, convenient operation into consideration.
Parameter:
Type | NC1300F 3-axis gun drilling machine |
Bore of drill hole | φ3-30mm |
Maximum depth of one-off drill hole | 1300mm |
Dimension of work platform | 1000x1700mm |
X axis stroke | 1600mm |
Y axis stroke | 1000mm |
Z axis stroke | 1350mm |
Rapid feeding | 4000mm/min |
Maximum rotary sped of spindle | 6000rpm |
Spindle power | 7.5kw |
XYZ servo motor power | 3kw/3kw/1.5kw |
Pressure of cutting oil pump | 100kg/cm2 |
Oil pump capacity of oil hydraulic pump | 8-42L/min |
Capacity of cutting oil tank | 400L |
Load weight of work platform | 8000kg |
Net weight of equipment | 12000kg |
External size of machine tool | 5400x4800x2900mm |
Total power | 35kw |
Numerical control system | MITSUBISHI |
Accessories for NC1300F 3-axis gun drilling machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
