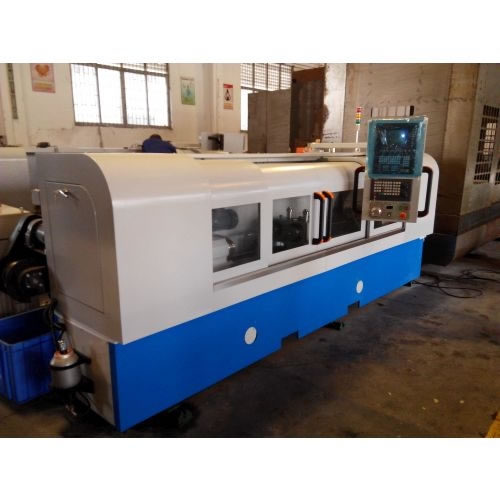

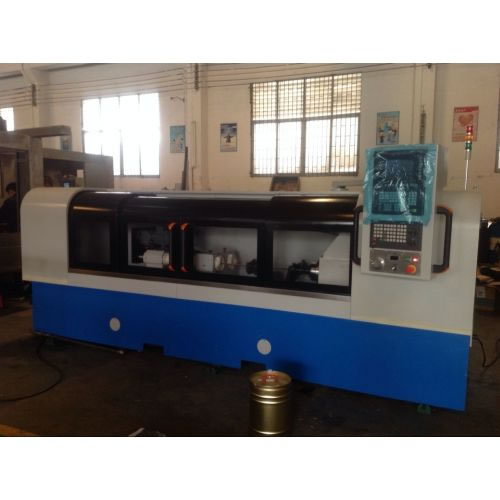

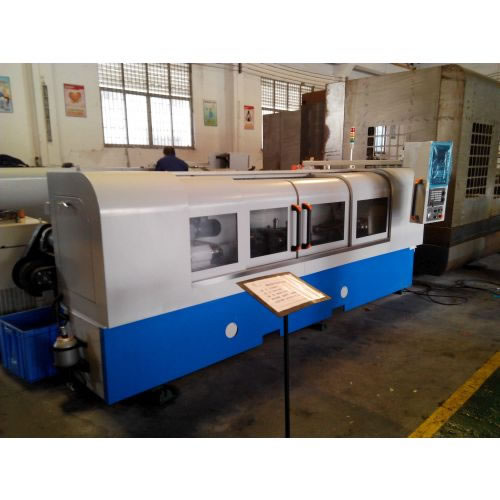

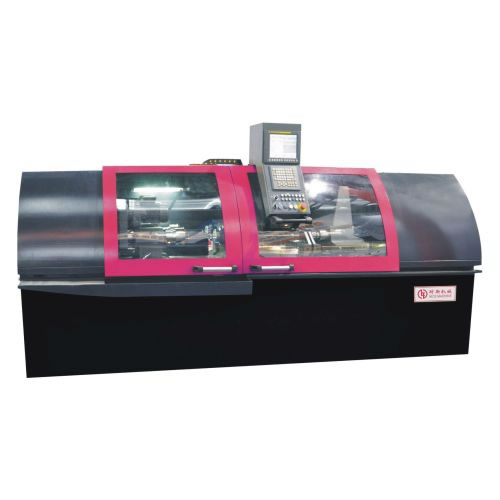

NCSD2Z800 2-Axis Gun Drilling Machine
Description:
2-axis gun hole machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. It is featured by high precision, reliability, low cost and convenience to operate. Its drill hole depth reaches 800mm. 2-axis gun hole machine can make the deep-hole processing efficient, precise regardless of fine surface finish.
Features:
- 1. Steady performance NCSD2Z800 2-axis gun hole machine is featured by steady performance, simple operation as it adopts MITSUBISHI servo numerical control system.
- 2. Wide work space facilitates the clamping and processing of large workpiece.
- 3. NCSD2Z800 2-axis gun hole machine makes an efficient, precise drilling in addition to fine surface finish.
Parameter:
Model | NCSD2Z800 2-axis gun hole machine |
Diameter scope of gun drill | φ2-22mm |
Maximum drill hole depth | 800mm |
Height from the main shaft center to the work bench | 200mm |
Maximum diameter of workpiece | 72mm |
Maximum length of workpiece | 900mm |
Rotating speed of main shaft | 6000rpm |
Feeding speed of main shaft | 0-1000mm/min |
Movement speed of main shaft | 0-5000mm/min |
Rotating speed of workpiece | 60rpm |
Motor power of main shaft | 7.5kw |
Power of workpiece rotating motor | 0.37x2kw |
Total power of machine tool | 30kw |
Pressure scope of cooling liquid | 3-10.5mpa |
External size of machine tool | 4800x2000x1800mm |
Flow rate scope of cooling liquid | 0-64L/min |
Total weight of machine tool: | 3.5T |
Machine tool control system | MITSUBISHI |
Standard fittings:
Transformer Chip cleaner Oil temperature control machineMain shaft
Available accessories:
Guide sleeveTool sharpening machine Chipping oil Deoiler Rubber sheath Drill
