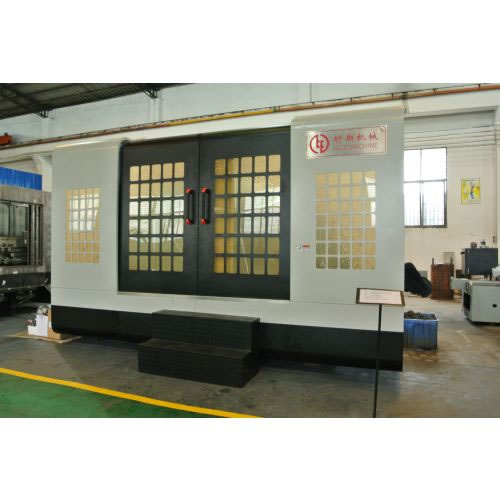

Drilling And Milling Compound Machine (NCSX Series)

Description:

NCSX series drilling and milling compound machine is new-developed machine, which combines milling and deep-hole processing. It is mainly applied in mold and mechanical manufacturing industry.

Main characteristics:

1. Drilling and milling compound machine can make milling, rigid tapping and deep-hole processing be finished in one-time clamping as it is equipped with powerful milling and cutting main shaft.
2. The machine is equipped with rotating work bench to reduce the clamping times of workpiece and to realize oblique hole.
3. Equipped with magnetic working bench, drilling and milling compound machine can achieve fast clamping. With ladder slit installed, clamping with different materials is available.

Detail:

Parameter:

Project		NCSX-1000 drilling and milling compound machine
Processing travel	Diameter of processed hole(mm)	Ф3~Ф30
	Maximum drill hole depth(mm)	1000
	Travel of work bench(X-axis)(mm)	1000
	Travel of sliding platform(Y-axis)(mm)	800
Processing speed	Maximum rotating of main shaft(rpm)	6000
	Feeding speed of main shaft(mm/min)	0~3000
	Movement speed of work bench(X-axis)(mm/min)	8000
	Movement speed of sliding platform(Y-axis)(mm/min)	8000
Dynamic parameter	X-axis feed motor(work bench)(N.m)	22
	Y-axis feed motor(guide way)(N.m)	22
	Z-axis feed motor(drill stem box)(N.m)	12
	Motor of gun drill main shaft(kW)	15
Other	Pressure scope of cooling liquid(Mpa)	2~11
	Flow rate scope of cooling liquid(L/min)	6~110
	Size of work bench(mm)	1200×800
	Load-bearing of work bench(t)	5
	Total power of machine tool(kW)	38
	External size of machine tool(mm)	5300×4000×3000
	Total weight of machine tool(t)	9
	Machine tool control system	MITSUBISHI
