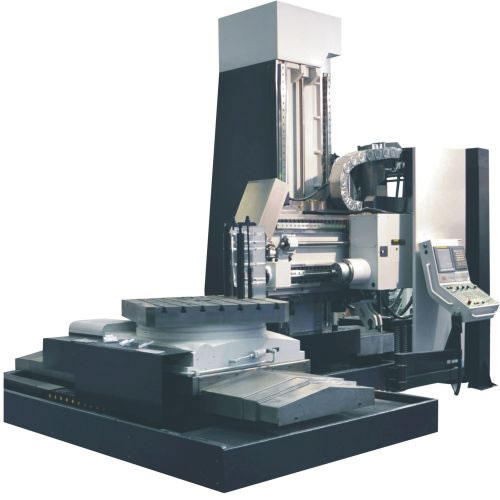

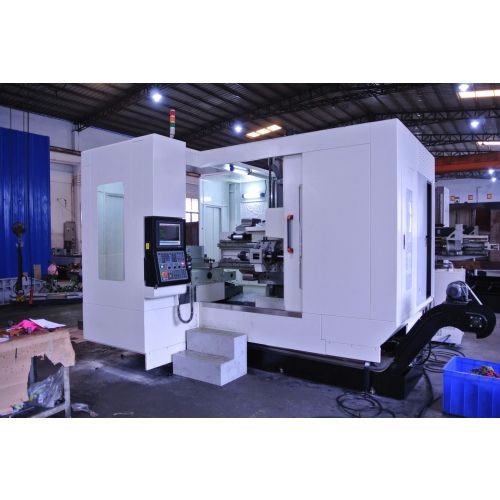

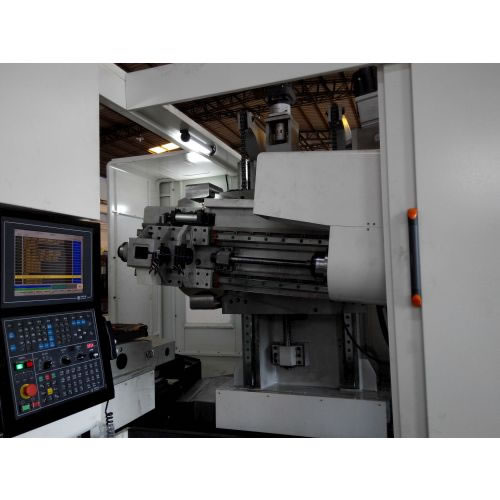

CNC Drilling and Milling Machine (NCS6Z Series)
Description:
- CNC drilling and milling machine is widely used in mold and mechanical field, for milling and deep-hole processing of complicated parts.
- The multiple-functional numerical drilling and milling machine combines milling and deep-hole processing, which makes it possible to achieve multiple working procedures at one-time clamping. NCS6Z series includes NCS6Z1212-1100, NCS6Z3015-1500 and NCS6Z2215-1500.
- Our company is a professional and reliable supplier of CNC drilling and milling machine, in China because we keep absorbing advanced technology at home and abroad.
Main characteristics:
- 1. CNC drilling and milling machine supports high -precise rotation of main shaft (shaft A can rotate upward 15degree and downward 25degree).
- 2. The main shaft has strong milling force (cutter can be installed).
- 3. The machine will achieve good processing with high efficiency, high precision and fine surface finish, to 0.4~0.8 when it install ejector drill.
- 4. The main body of CNC drilling and milling machine is made of cast iron with high intensity, high rigidity, thus it can assure stable and safe during processing work.
Parameter:
Project | NCS6Z1212-1100 | NCS6Z3015-1500CNC drilling and milling machine | NCS6Z2215-1500 | |
Processing length |
X-axis (length of work bench)(mm) | 1200 | 3000 | 2200 |
Y-axis (length of sliding pillar)(mm) | 1200 | 1500 | 1500 | |
W-axis (length of vertical pillar)(mm) | 500 | 800 | 800 | |
A-axis(rotation of square guide way)(degree) | The main shaft rotates upward15°and downward 25° | The main shaft rotates upward15°and downward 25° | The main shaft rotates upward15°and downward 25° | |
Maximum drill depth of gun drill(mm) | 1100 | 1500 | 1500 | |
Maximum drill depth of spray and absorb drill(mm) | - | 1000 | 1000(selective) | |
Distance from the center of main shaft to the surface of work bench(mm) |
0-1200 | 0-1500 | 0-1500 | |
Processing speed |
Maximum rotating of main shaft(rpm) | 6000 | 4000 | 4000 |
Fast feeding(X,Y,Z)(m/min) | 10 | 10 | 10 | |
Maximum rotating speed of work bench(rpm) | 8.33 | 18.8 | 18.8 | |
Maximum rotating speed of square guide way(rpm) | 215 | 215 | 215 | |
Dynamic parameter |
Motor of main shaft(kW) | 15/18.5(30min) | 18.5/22(30min) | 18.5/22(30min) |
X-axis feeding motor(N.m) | 30 | 40 | 40 | |
Y-axis feeding motor(N.m) | 30 | 40 | 40 | |
Z-axis feeding motor(N.m) | 30 | 40 | 40 | |
W-axis feeding motor(N.m) | 12 | 30 | 22 | |
A-axis feeding motor(N.m) | 22 | 30 | 22 | |
B-axis feeding motor(N.m) | 30 | 40 | 30 | |
Total power of machine tool(kW) | 62 | 80 | 74 | |
Diameter of drill hole |
Drilling diameter of gun drill(mm) | Ф3-30 | Ф3-35 | Ф3-35 |
Drilling diameter of spray and absorb drill(mm) | Ф18-65(selective) | Ф18-65(selective) | ||
Other | Pressure scope of cooling liquid(Mpa) | 2-11 | Gun drill 2-11 Spray and absorb drill 1.0-1.7 |
2-11 |
Flow rate scope of cooling liquid(L/min) | 6-80 | Gun drill 6-110 Spray and absorb drill 163 |
6-110 | |
Size of rotating table(mm) | 1200×1000 | 2400×1800 | 1600×1200 | |
Load-bearing of work bench(t) | 5 | 30 | 15 | |
Taper of main shaft end | BT40 | BT50 | BT50 | |
External size of machine tool(mm) | 6200×4600×3710 | 8900×8200×4800 | 8440×7350×4800 | |
Total weight of machine tool(t) | 18 | 45 | 35 | |
Machine tool control system | FANUC | FANUC | FANUC |
