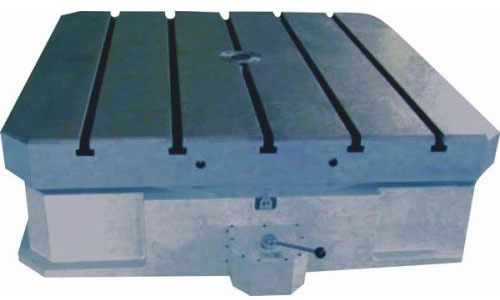

Rotary Work Bench (NCJT)
Description:
Rotary work bench is mainly used in machine tool to achieve multi-angle processing. There are five types, NCJT500, NCJT800, NCJT1200 and NCJT1600. The size of these rotary work benches is 500×500mm, 800×800, 1000×1000mm 1200×1200mm, 1600×1600mm relatively.
Advantages:
- 1. Competitive price
Our products have very competitive price because of reasonable design and scientific calculation. - 2. We have various rotary work benches for you to choose.
- 3. Good quality
As an experienced manufacturer of mechanical products, we can ensure you good quality and excellent service.
Parameter:
Project | NCJT500 rotary work bench | NCJT800 | NCJT1000 rotary work bench | NCJT1200 | NCJT1600 |
Size of work bench (mm) | 500×500 | 800×800 | 1000×1000 | 1200×1200 | 1600×1600 |
Total thickness (mm) | 190 | 290 | 290 | 340 | 420 |
Positioning hole(mm) | 14 | 18 | 18 | 22 | 28 |
Travel of work bench at the time of loosing/locked (mm) | 5 | 6 | 6 | 6 | 6 |
Air pressure of work bench at the time of loosing/locked (kg/cm²) | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
Rotation method | Manually | Manually | Manually | Manually | Manually |
Minimum scale mark | 5 | 5 | 5 | 5 | 5 |
Maximum load capacity (t) | 2.4 | 5.5 | 5.5 | 8 | 9 |
Coupling mechanism force (t) | 2.8 | 5.9 | 6 | 10 | 11 |
Total weight (t) | 0.6 | 1.4 | 1.7 | 3.4 | 4.5 |
