4-Axis Gun Drilling Machine (NCSD4Z Series)

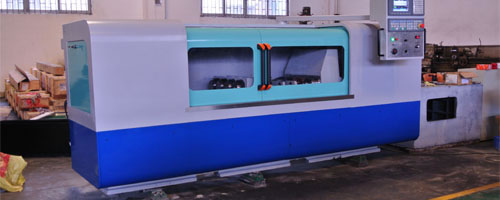

![4-Axis Gun Drilling Machine (NCSD4Z Series)](pro/4-2-d.jpg)
Description:
4-spindle gun drilling machine is a newly-developed automatic machine by our company and it is mainly applied in deep hole processing. With 4 shafts, the machine can greatly improve work efficiency. Our company is professional CNC gun drilling machine supplier in China, thus we can assure you good quality and excellent service.
Note:
Custom-made 4-spindle gun drilling machine is available.

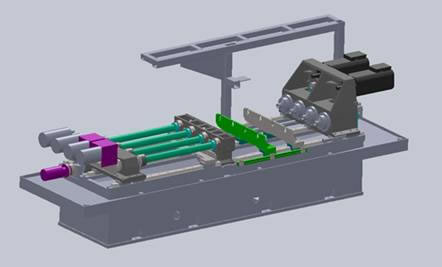

![](pic/4agd-1.jpg)
Application:
4-spindle gun drilling machine is mainly used for deep hole processing, like center hole processing and eccentric hole processing of bar.
Features:
- 1. The machine can greatly improve work efficiency with multi spindles working together.
- 2. High precision and fine surface finish can be guaranteed with cone hole and high pressure cooling oil.
- 3. 4-spindle gun drilling machine is characterized by fast drilling, simple operation, economical operation.
- 4. Straight and single-angle drillings (with optional rotary table)
- 5. Mechanical transmission adopts internal circulation ball screw with high precision.
- 6. 4-spindle gun drilling machine supports digital control system to make operation easy and fast.
- 7. Z axis supports linear guided stage to ensure the high precision.
- 8. The machine is equipped with deep hole cutting cooling system which can supply different flow rate and pressure according to size of drill.
- 9. 4-spindle gun drilling machine adopts stepless speeding regulating, which ensure the large sale of speeding regulating and reasonable power configuration.
- 10. Z axis supports linear guided stage to ensure the high precision.
- 11. The machine reaches an advanced level among other drilling machine in performance, precision, scale of processing, operation and work efficiency.
![](pic/4agd-2.jpg)
![](pic/4agd-3.jpg)
![](pic/4agd-4.jpg)
![](pic/4agd-5.jpg)
Detail:
Model | NCSD4Z-600 CNC gun drilling machine | |
Index | unit | |
Diameter scope of gun drill (mm) | mm | 3~16 |
Drill hole depth | mm | 600 |
Distance of drill pipe box (Z axis) | mm | 650 |
Maximum rotation speed of main shaft | r /min | 6000 |
Rotation speed of workpiece | r /min | 200 |
Speed of main shaft feeding | mm/min | 0~1000 |
Motor power of main shaft | kW | 5.5x2 |
Motor power of workpiece rotation | kW | 0.75X4 |
Maximum Diameter of workpiece | mm | Φ72 |
Maximum length of processing part | mm | 700 |
Pressure scale of chipping cooling liquid | MPa | 3~10.5 |
Flow scale of chipping cooling liquid | L/min | 0~130 |
Total power of the machine | kW | 35 |
Size of drilling machine | 4200x2800x1800 | |
Weight of drilling machine | Ton | 3.5 |
CNC device | new digital control system |
Standard fittings:
![Transformer](pic/4-2.jpg)
![Chip cleaner](pic/4-3.jpg)
![Oil temperature control machine](pic/4-4.jpg)
![Main shaft](pic/4-5.jpg)
Main shaft
Available accessories:
![Guide sleeve](pic/4-6.jpg)
![Tool sharpening machine](pic/4-7.jpg)
Tool sharpening machine
![Chipping oil](pic/4-8.jpg)
![Deoiler](pic/4-9.jpg)
![Rubber sheath](pic/4-10.jpg)
![Drill](pic/4-1.jpg)
