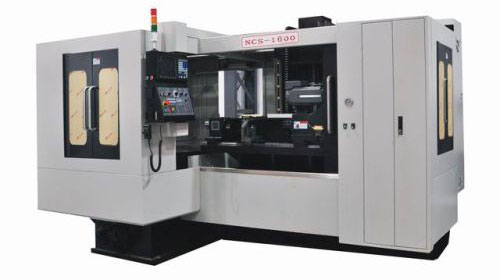

NCS1600 3-Axis Gun Drilling Machine
Description:
NCS1600 CNC gun drilling machine is widely used in deep hole mold processing, like water channel hole, punch hole, hot runner hole, hydraulic valve, distributor, heat exchanger plate etc. With long drill depth 1600mm, it is especially fit for deep-hole processing. With three spindles, it CNC gun drilling machine greatly improve work efficiency. By absorbing essence of similar products at home and abroad, our company is a professional and reliable manufacturer of 3-spindle gun hole machine in China.
Features:
- 1. NCS1600 CNC gun drilling machine supports good flexibility with modular construction, and standard fittings.
- 2. Different levels of automation can be incorporated to satisfy custom requirements.
- 3. It is convenient to operate and maintain NCS1600 CNC gun drilling machine.
- 4. A color touch screen HMI provide user with interface and intelligent cutting parameters optimized for gun drilling.
Parameter:
Type | NCS1600 CNC gun drilling machine |
Bore of drill hole | φ3-35mm |
Maximum depth of one-off drill hole | 1600mm |
Dimension of work platform | 1400x2200mm |
X axis stroke | 2100mm |
Y axis stroke | 1200mm |
Z axis stroke | 1650mm |
Rapid feeding | 5000mm/min |
Maximum rotary sped of spindle | 6000rpm |
Spindle power | 11kw |
XYZ servo motor power | 3kw/3kw/2.0kw |
Pressure of cutting oil pump | 100kg/cm2 |
Oil pump capacity of oil hydraulic pump | 8-52L/min |
Capacity of cutting oil tank | 400L |
Load weight of work platform | 12000kg |
Net weight of equipment | 17000kg |
External size of machine tool | 6300x5800x3200mm |
Total power | 40kw |
Numerical control system | MITSUBISHI |
Accessories for NCS-1600 CNC gun drilling machine include standard fittings and available accessories. Standard accessories cover transformer, main shaft etc. If you need more information, please refer toNCS Series_pdf.
