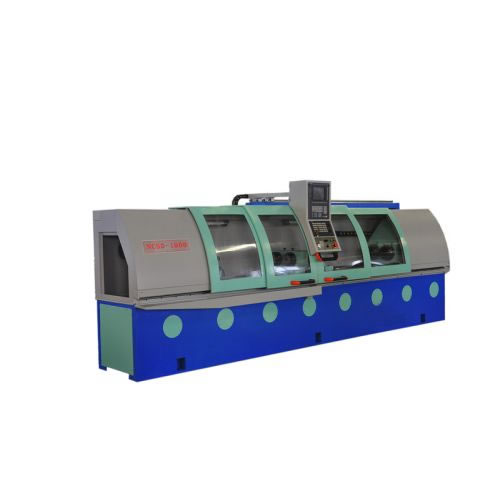

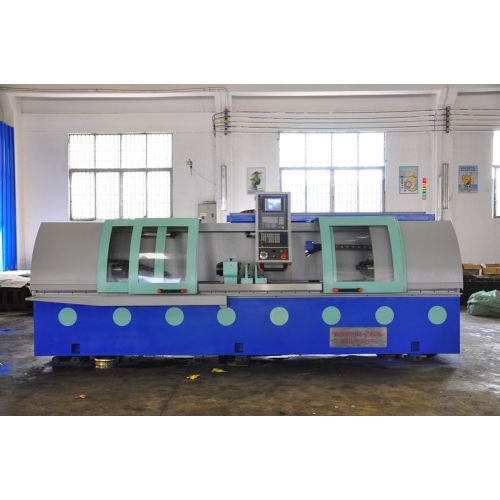

NCSD2Z1000 2-Axis Gun Drilling Machine
Description:
NCSD2Z1000 2-axis gun drilling machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. It is a professional machine tool for processing shaft parts. NCSD2Z1000 2-axis gun drilling machine is featured by high precision, reliability, low cost and convenience to operate. Its drill depth reaches 1000mm. It can make the deep-hole processing efficient, precise as well as fine surface finish.
Features:
- 1. Wide work space facilitates the clamping and processing of large workpiece.
- 2. NCSD2Z1000 2-axis gun drilling machine is featured by steady performance, simple operation as it adopts MITSUBISHI servo numerical control system.
- 3. NCSD2Z1000 2-axis gun drilling machine is a professional machine tool in deep hole processing. It makes an efficient, precise drilling as well as fine surface finish.
Parameter:
Item | Specification | Unit | Data |

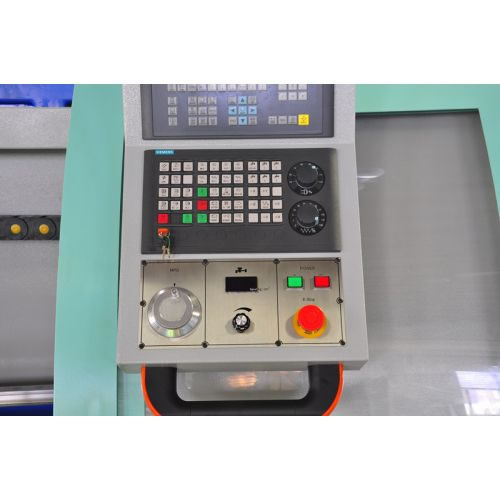

Control system | SIEMENS 828D | ||
Coverage of machine tool (L× W × H) | mm | 4990×2085×1880 | |
Overall weight | kg | 4500 | |
Axis stroke | Z-axis(drill rod box)stroke | mm | 1350 |
Dynamic parameters | Speed of main shaft | r/min | 200-6,000 |
Motor power of main shaft | kW | 11 | |
Z-axis motor | kW | 2.1 | |
Total power of machine tool | kW | 25 | |
Speed | Rapid feed speed | mm/min | 0-4,000 |
Manual feed speed | mm/min | 0-2,000 | |
Cutting feed speed | mm/min | 0-150 | |
Processing | Hole linearity | mm | 1/1000 |
Hole surface precision | H8-H9 | ||
Processing speed S45C(ø10×500mm) | min | 5-10 | |
Maximum drilling depth | mm | 1200 | |
Hole diameter | mm | Single-shaft 3-30 Double-shaft 8-30 | |
Coolant pressure range | Mpa | 2-11 | |
Coolant flow range | L/min | 6-142 |
Standard fittings for 2-axis gun drilling machine:
Transformer Chip cleaner Oil temperature control machineMain shaft
Available accessories:
Guide sleeveTool sharpening machine Chipping oil Deoiler Rubber sheath Drill
