Spray and Absorb Drilling Machine (NCSP1500)
Description:

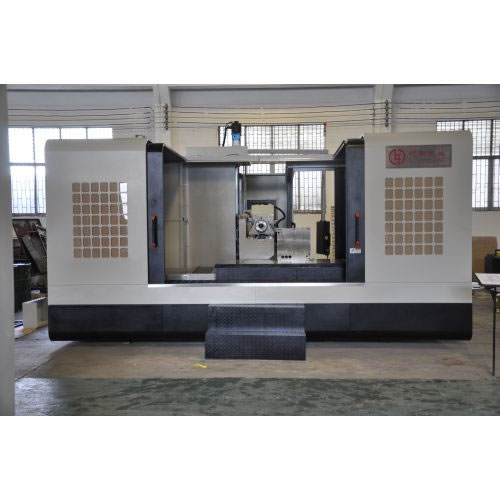

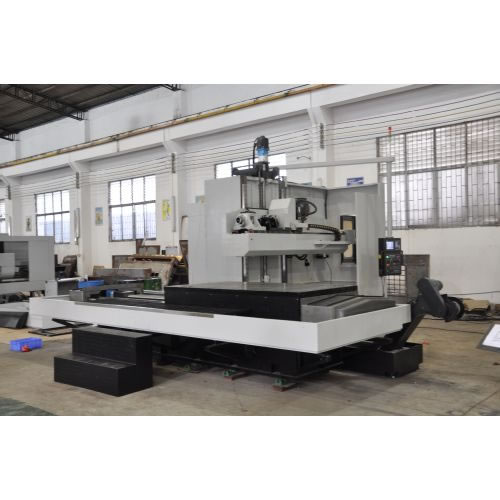

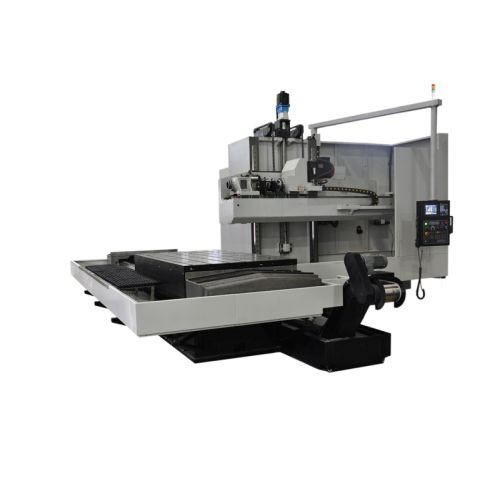

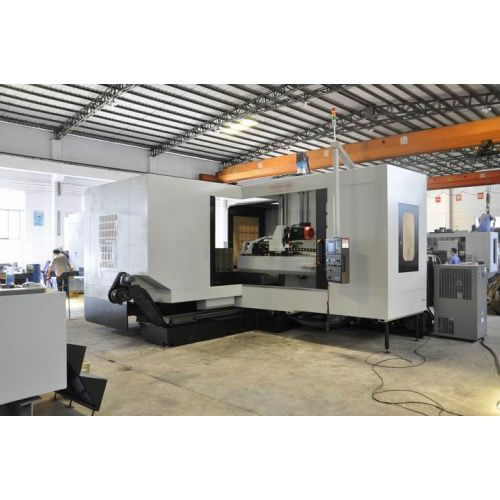

NCSP series spray and absorb drilling machine is a multifunctional horizontal ejector drill machine which combines spray and absorb drill, knife grain drill and gun drill. This deep hole drill machine can be used in mold and mechanical manufacturing industry. Our horizontal ejector drill machine (spray and absorb drilling machine) is classified into NCSP2515-1500, NCSP2012-1500 and NCSP1512-1500. Their maximum drill depth of gun drill can reach 1500mm.
Features of NCSP1500 Horizontal Ejector Drill Machine:

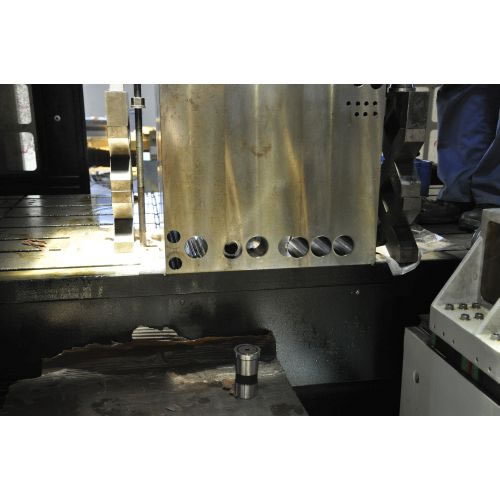

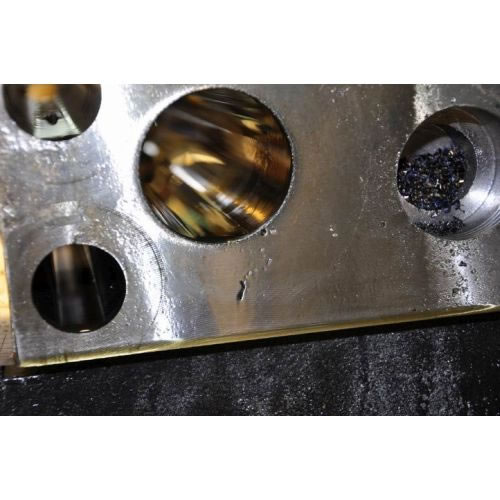

- 1. The machine is characterized by high efficiency, high precision and fine surface finish, 0.4~0.8.

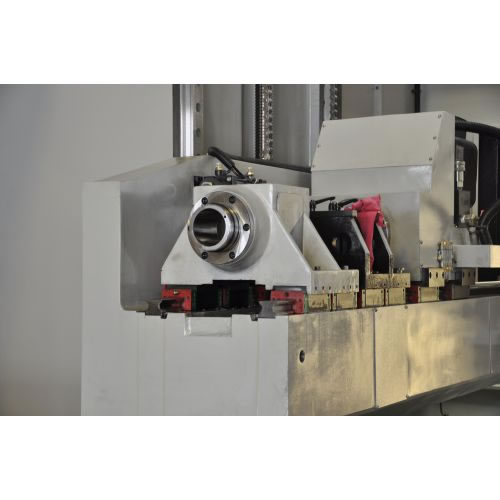

- 2. The machine adopts powerful milling main shaft to achieve one- time drilling and milling processing.

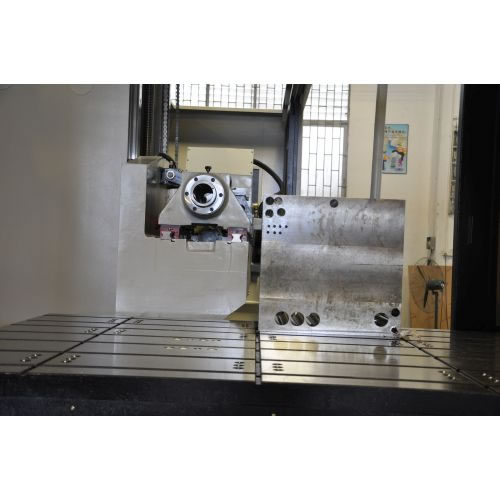

- 3. The spray and absorb drilling machine is equipped with rotating work bench to reduce the clamping times of workpiece and to realize oblique hole.

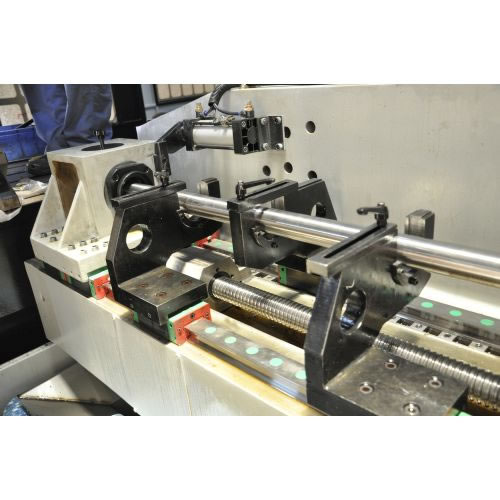

Details of NCSP1500 Horizontal Ejector Drill Machine:
Project | NCSP2515-1500 | NCSP2012-1500 | NCSP1512-1500 | |
Processing length |
Diameter of drill hole(mm) | Ф3-Ф35(Gun drill) Ф18-Ф65(Spray and absorb drill) |
Ф3-Ф35(Gun drill) Ф18-Ф65(Spray and absorb drill) |
Ф3-Ф35(Gun drill) Ф18-Ф65(Ejector Drill) |
X-axis (length of work bench)(mm) | 2500 | 2000 | 1500 | |
Y-axis (length of sliding plate)(mm) | 1500 | 1200 | 1200 | |
W-axis (length of square sliding guide way)(mm) | 400 | 400 | 400 | |
Maximum drill depth of gun drill(mm) | 1500 | 1500 | 1500 | |
Maximum drill depth of Horizontal Ejector Drill (mm) | 1000 | 1000 | 1000 | |
Processing speed |
Maximum rotating speed of gun drill main shaft(rpm) | 4500 | 4500 | 4500 |
Maximum rotating speed of milling main shaft(selective)(rpm) | 4500 | 4500 | 4500 | |
X-axis movement speed of work bench(mm/min) | 0-10000 | 0-10000 | 0-10000 | |
Y-axis movement speed of slide guide way(mm/min) | 0-10000 | 0-10000 | 0-10000 | |
Feeding speed of milling(selective)(mm/min) | 0-2000 | 0-2000 | 0-2000 | |
Feeding speed of gun drill main shaft(mm/min) | 0-3000 | 0-3000 | 0-3000 | |
Dynamic parameter |
X-axis feeding motor(N.m) | 30 | 30 | 22 |
Y-axis feeding motor(N.m) | 40 | 40 | 22 | |
Z-aixs feeding motor(N.m) | 22 | 22 | 22 | |
W-axis feeding motor(N.m) | 22 | 22 | 22 | |
Motor of drill stem main shaft(kW) | 18.5 | 18.5 | 18.5 | |
Motor of milling main shaft(selective)(kW) | 7.5 | 7.5 | 7.5 | |
Total power of machine tool(kW) | 60 | 58 | 54 | |
Other information of Horizontal Ejector Drill Machine | Pressure scope of cooling liquid(Mpa) | Gun drill 2-11 Spray and absorb drill 0.1-2 |
Gun drill 2-11 Spray and absorb drill 0.1-2 |
Gun drill 2-11 Spray and absorb drill 0.1-2 |
Flow rate scope of cooling liquid(L/min) | Gun drill 6-110 Ejector Drill 40-165 |
Gun drill 6-110 Spray and absorb drill 40-165 |
Gun drill 6-110 Spray and absorb drill 40-165 |
|
Size of work bench(mm) | 2700×1200 | 2200×1200 | 1700×1200 | |
Load-bearing of work bench(t) | 12 | 10 | 6 | |
Taper of main shaft end | BT40 | BT40 | BT40 | |
External size of machine tool(mm) | 6660×6800×4000 | 6660×6200×3800 | 6600×6100×3300 | |
Total weight of machine tool(t) | 24 | 21 | 13 | |
Machine tool control system | Mitsubishi (or FANUC selective) | Mitsubishi (or FANUC selective) | Mitsubishi (or FANUC selective) |
