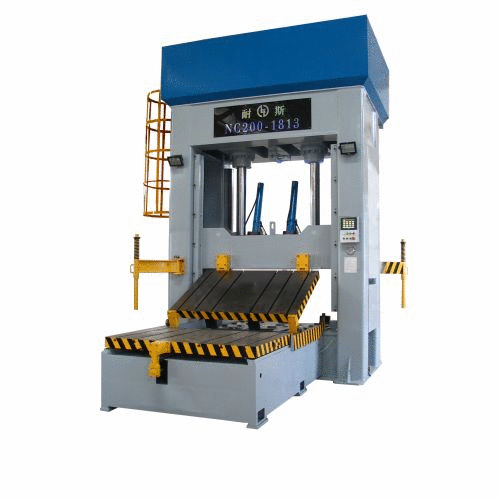

NC200-1813 Vertical Die Spotting PressRead More
Description:
NC200-1813Hydraulic die tryout press is mainly applied in repair or verification of plastic die, hardware molding die. It is self-developed machine by absorbing the essence at home and abroad. It adopts electric magnetic chuck, thus it is unnecessary to fix screws and can save time, labor. Additionally, computer control and man/machine interface operation make operation easy, quick, safe, and reliable. NC200-1813Hydraulic die tryout press with max spotting force: 200T, work bench: 1800×1300 is especially for middle and large mould. Our company is a professional manufacturer of vertical mold spotting press in China.
Types:
Features:
- 1. Large rigidity and small deformation
NC200-1813Hydraulic die tryout press adopts welding type frame structure. Frame and sliding table are processed through tempering treatment, for the advantages of no stress, large rigidity and small formation. - 2. Flatness
Upper and lower working benches and guide rails of pressure-plate die spotting machine are made from nodular cast iron and adopt manual scraping for surface processing, with sound flatness, high precision and small deformation. - 3. Safe and energy-saving
NC200-1813Hydraulic die tryout press supports electric control permanent magnet. It can ensure continuous magnet supply, which is safe and energy-saving. - 4. Perfect safety facilities
Complete security facilities can ensure men’s safety, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities. - 5. High precision
NC200-1813Hydraulic die tryout press has high precision because hydraulic system adopts vibration-absorption facilities which will reduce hydraulic impact. - 6. Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion.
- 7. Good red lead can be achieved because of high speed of NC200-1813Hydraulic die tryout press.
Components:
Front viewSide viewParameter:
Model | NC200-1813Hydraulic die tryout press |
Max spotting force(T) | 200 |
Max lifting force(T) | 60 |
Die opening space(mm) | 1800 |
Size of work bench(mm) | 1800×1300 |
Bearing capacity of upper working bench(T) | 7 |
Bearing capacity of lower working bench(T) | 16 |
Suction force of upper magnetic disk(T) | 125 |
Suction force of lower magnetic disk(T) | 80 |
Fast up/down speed(mm/s) | 70/70 |
Slow up/down speed(mm/s) | <25 |
Eject capacity(T) | 5 |
Eject stroke(mm) | 100 |
Out stroke of lower working bench(mm) | 2800 |
Motor power(KW) | 15 |
Total height of machine(H)(mm) | 5680 |
Land area of machine(mm) | 5600×4700 |
Weight of machine(T) | 25 |
