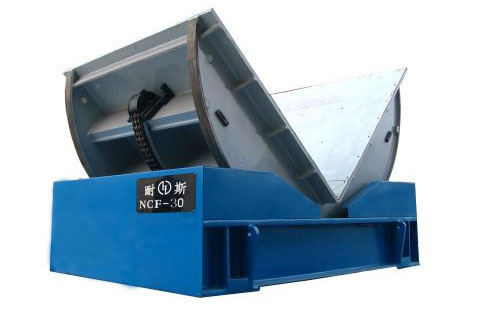

NCF-30 Mold Turnover Machine
Description:
90 degree industrial mold upender is widely used for reversing or turning over heavy objects. It is mainly applied in mold producing industry, injection industry and die-casting industry. It is a desirable product for adjusting of large mold. 90 degree industrial mold upender can turn from 0-90 degree and its rolling capacity is 30T.
Features:
- 1. The machine adopts special double chain drive, oblique gear and worm speed reducer.
- 2. Four-roller device is wrapped with polyamide adhesive.
- 3. The 90 degree industrial mold upender is fast, stable and safe as it supports inverter control.
- 4. It adopts adjustable mechanical pressure device.
- 5. It has compact and durable structure and comparatively low height of bench and enough size of bench.
- 6. 90 degree industrial mold upender adopts magnetic motor and automatic locking in case of power off during rolling;
- 7. Its main parts are from famous professional manufacturers and are reliable.
Parameter:
Model | NCF-30 industrial mold upender |
Rolling capacity | 30T |
Time for rolling by 90 | 40s |
Size of bench surface | 2000x1720mm |
Height of bench surface | 870mm |
External size | 2000x2500x2590mm |
Central size | 700mm |
Motor power | 5.5kw |
Weight of machine tool | 7.5T |
