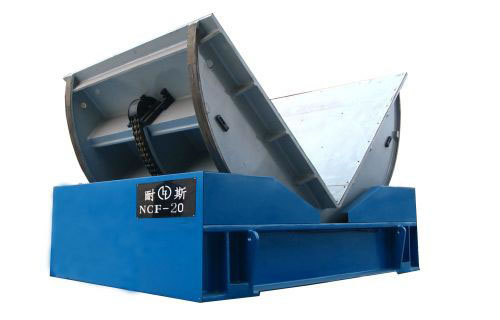

NCF-20 Mold Turnover Machine
Description:
- Mould turnover machine is widely used in mold producing industry, injection industry and die-casting industry.
- With rolling capacity 20T, NCF-20 mould turnover machine is a desirable for adjusting of large mold.
Application:
The machine is designed for dislocation and turning-over of the heavy objects such as metal coils.
Features:
- 1. NCF-20 mould turnover machine adopts special double chain drive, oblique gear and worm speed reducer.
- 2. Four-roller device is wrapped with polyamide adhesive.
- 3. NCF-20 mould turnover machine is fast, stable and safe as it supports inverter control.
- 4. It adopts adjustable mechanical pressure device.
Parameter:
Model | NCF-20 mould turnover machine |
Rolling capacity | 20T |
Time for rolling by 90 | 35s |
Size of bench surface | 1800x1500mm |
Height of bench surface | 760mm |
External size | 1800x2300x2260mm |
Central size | 600mm |
Motor power | 5.5kw |
Weight of machine tool | 4.8T |
