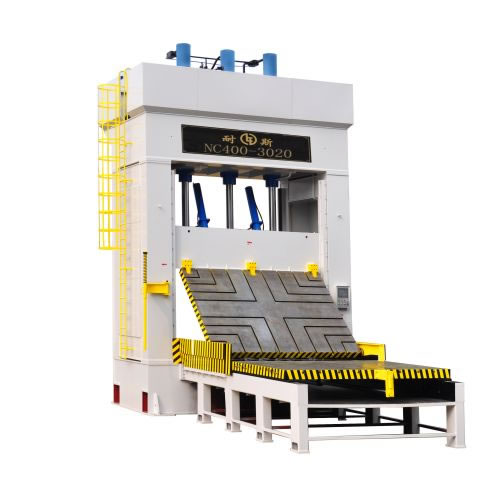

Vertical Die Spotting Press (Large Model)Read More
Description:
Mold spotting press machine is mainly applied for adjusting and verification of mould. The machine with spotting force more than 300T includes these types NC300F-2015, NC300-2518, NC400-3020, and NC500-3525. The self-developed mold spotting press machine adopts electric magnetic chuck and it is unnecessary to fix screws. Thus, it can save time and save labor.
Types:
NC300F-2015 vertical die spotting machine | NC300-2518 | NC400-3020 | NC500-3525 |
Application:
Mold spotting press machine is used to process mould. After spotting and pressing, it can move lower die out, then move upper die out and reverse 180°.Upon the condition of spotting work, the technician can fit the faying surface of mould safely and delicately.
Features:
- 1. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion. - 2. Perfect safety facilities
There are complete safety facilities to ensure safety, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities. - 3. Good red lead can be achieved because of high speed of mold spotting press machine.
- 4. Easy operation and high efficiency.
The machine adopts PLC control, man/machine interface, electric cabinet etc, makes improves work efficiency and makes it easy to operate.
Technical Parameter:
Model | NC400-3020 mold spotting press machine |
Max spotting force(T) | 400 |
Max lifting force(T) | 100 |
Die opening space(mm) | 2600 |
Size of working bench(mm) | 3000×2000 |
Bearing capacity of upper working bench(T) | 18 |
Bearing capacity of lower working bench(T) | 40 |
Suction force of upper magnetic disk(T) | 345 |
Suction force of lower magnetic disk(T) | 90 |
Fast up/down speed(mm/s) | 80/80 |
Slow up/down speed(mm/s) | 25 |
Eject capacity(T) | 15 |
Eject stroke(mm) | 200 |
Out stroke of lower working bench(mm) | 4400 |
Motor power(KW) | 37 |
Total height of machine(H)(mm) | 7850 |
Land area of machine(mm) | 8100×7000 |
Weight of machine(T) | 80 |
