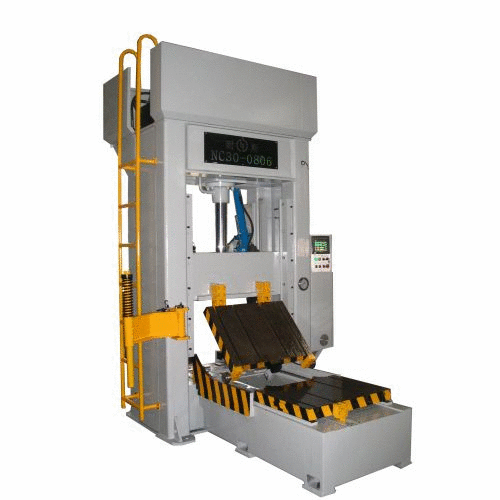

Vertical Prensas para prueba de matricesleer más
Descripción
Vertical die spotting press is widely used in repair or verification of mold and it is suitable for medium and large mold. Based on the conventional vertical mold spotting press, the vertical die spotting press adopts electric magnetic chuck, thus it is unnecessary to fix the screws. Therefore, it can save time and save labor.
Types:
Aplicación:
Vertical die spotting press is mainly applied in repair or verification of plastic die, hardware casting die. The machine replaces the traditional simple fitting of knocking by copper bar because of its fast and automation operation, which greatly improves efficiency and precision of die spotting press.
- 1. Complete safety facilities
There are safety facilities to guarantee safety of men, such as safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities. - 2. High precision
The vertical die spotting press has high precision because hydraulic system adopts vibration-absorption facilities which will reduce hydraulic impact. - 3. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion. - 4. Good red lead can be achieved because is high speed of vertical die spotting press.
- 5. Small formation
Small-tonnage type (below 200T) frame adopts welding type frame structure. While large-tonnage type (above 300T) frame adopts welding type and separated frame. Separated parts are connected through green columns and screws. Frame and sliding table are processed through tempering treatment, for the advantages of no stress, large rigidity and small formation. - 6. Flatness
Upper and lower working benches and guide rails of pressure-plate vertical die spotting press are made from nodular cast iron, with advantages of sound flatness, high precision and small deformation.
Specification: NC30 Die Spotting Press:
Modelo | NC30 vertical die spotting press |
Fuerza máxima de presión(T) | 30 |
Fuerza máxima de elevación(T) | 12 |
Espacio abierto(mm) | 1000 |
Mesa de trabajo(mm) | 800×600 |
Capacidad de aguante mesa de trabajo superior (T) | 0.5 |
Capacidad de aguante mesa de trabajo inferior (T) | 2 |
Fuerza de succión magnética superior(T) | 20 |
Fuerza de succión magnética inferior (T) | 15 |
Velocidad alta arriba/abajo (mm/s) | 70/70 |
Velocidad baja arriba/abajo (mm/s) | <25 |
Capacidad de expulsión(T) | 3 |
Fuerza de expulsión(mm) | 100 |
Fuerza de expulsión de mesa de trabajo inferior (mm) | 1400 |
Poder del motor(KW) | 4.0 |
Altura total(H)(mm) | 3300 |
Area total(mm) | 3200×2900 |
Peso total (T) | 4.8 |
