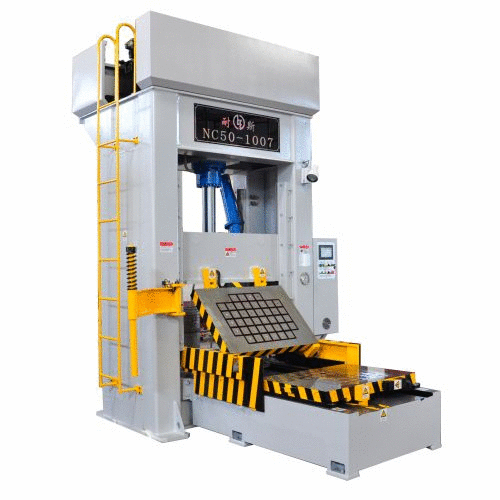

Vertical Die Spotting Press (Pressure Plate Model)leer más
Descripción
The vertical die spotting machine is widely used in repair or verification of mold and it is suitable for medium and large mold. Compared with traditional die try-out press, vertical die spotting machine adopts electric magnetic chuck, thus it is unnecessary to fix the screws. Therefore, it can save time and save labor. The vertical die spotting machine is the only one that adopts electric magnetic chuck in the world. Our company is a professional manufacturer of die spotting press in China.
Types:
Aplicación:
- The vertical die spotting machine is widely applied in adjustment and maintenance of plastic die and hardware die.
- The newly-developed machine initiates a revolution in mold-processing industry. The machine replaces the traditional simple fitting of knocking by copper bar because of its fast and automation operation, which greatly improves efficiency and precision of die spotting press.
Características
- 1.Complete safety facilities
There are complete safety facilities, like safety grating, anti-falling oil cylinder, locking cylinder and safety supporting frame and other prevention facilities to ensure staff’s safety. - 2. High precision
Hydraulic system adopts vibration-absorption facilities to ensure high precision. - 3. No damage
Hydraulic system is equipped with low-pressure protection facilities, to prevent damages caused by collision and insertion. - 4. Good red lead can be achieved because of high speed of vertical die spotting machine.
Parametros:
NC50 hydraulic die spotting machine | |
Fuerza máxima de presión(T) | 50 |
Fuerza máxima de elevación(T) | 20 |
Espacio abierto(mm) | 1100 |
Size of working bench(mm) | 1000×700 |
Capacidad de aguante mesa de trabajo superior (T) | 1 |
Capacidad de aguante mesa de trabajo inferior (T) | 3 |
Fuerza de succión magnética superior(T) | 25 |
Fuerza de succión magnética inferior (T) | 20 |
Velocidad alta arriba/abajo (mm/s) | 70/70 |
Velocidad baja arriba/abajo (mm/s) | <25 |
Capacidad de expulsión(T) | 3 |
Fuerza de expulsión(mm) | 100 |
Fuerza de expulsión de mesa de trabajo inferior (mm) | 1600 |
Poder del motor(KW) | 5.5 |
Altura total(H)(mm) | 3840 |
Area total(mm) | 3400×3100 |
Peso total (T) | 6.5 |
