NCSD2Z1000 2-Axis Gun Drilling Machine

Свяжитесь сейчас Видео Каталог Е

Описание:

NCSD2Z1000 2-axis gun drilling machine is widely used in drilling and reaming, tapping etc. It has a wide application in car industry, locomotives, shipbuilding, aviation and engineering mechanics. It is a professional machine tool for processing shaft parts. NCSD2Z1000 2-axis gun drilling machine is featured by high precision, reliability, low cost and convenience to operate. Its drill depth reaches 1000mm. It can make the deep-hole processing efficient, precise as well as fine surface finish.

Особенности

1. Wide work space facilitates the clamping and processing of large workpiece.
2. NCSD2Z1000 2-axis gun drilling machine is featured by steady performance, simple operation as it adopts MITSUBISHI servo numerical control system.
3. NCSD2Z1000 2-axis gun drilling machine is a professional machine tool in deep hole processing. It makes an efficient, precise drilling as well as fine surface finish.

Параметры

Item	Specification	Unit	Data

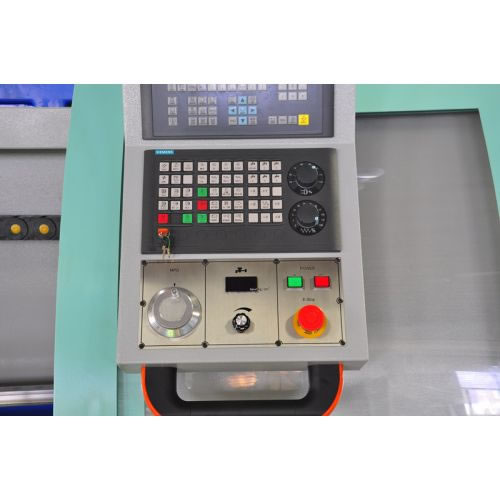

Control system			SIEMENS 828D
Coverage of machine tool (L× W × H)		mm	4990×2085×1880
Overall weight		kg	4500
Axis stroke	Z-axis(drill rod box)stroke	mm	1350
Dynamic parameters	Speed of main shaft	r/min	200-6,000
	Motor power of main shaft	kW	11
	Z-axis motor	kW	2.1
	Total power of machine tool	kW	25
Speed	Rapid feed speed	mm/min	0-4,000
	Manual feed speed	mm/min	0-2,000
	Cutting feed speed	mm/min	0-150
Processing	Hole linearity	mm	1/1000
	Hole surface precision		H8-H9
	Processing speed S45C(ø10×500mm)	min	5-10
	Maximum drilling depth	mm	1200
	Hole diameter	mm	Single-shaft 3-30 Double-shaft 8-30
	Coolant pressure range	Mpa	2-11
	Coolant flow range	L/min	6-142
