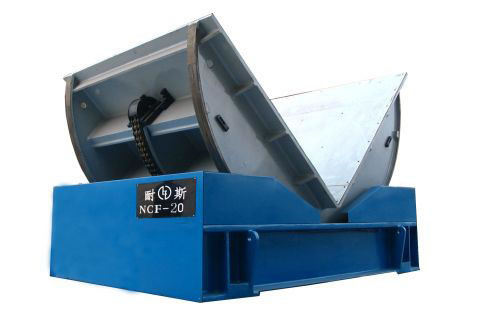

NCF-20 Mold Turnover Machine

NCF-20 Mold Turnover Machine

Описание:

  • Mould turnover machine is widely used in mold producing industry, injection industry and die-casting industry.
  • With rolling capacity 20T, NCF-20 mould turnover machine is a desirable for adjusting of large mold.

Применение:

The machine is designed for dislocation and turning-over of the heavy objects such as metal coils.

Особенности

  • 1. NCF-20 mould turnover machine adopts special double chain drive, oblique gear and worm speed reducer.
  • 2. Four-roller device is wrapped with polyamide adhesive.
  • 3. NCF-20 mould turnover machine is fast, stable and safe as it supports inverter control.
  • 4. It adopts adjustable mechanical pressure device.

Параметры

Модель NCF-20 mould turnover machine
Rolling capacity 20T
Time for rolling by 90 35s
Size of bench surface 1800x1500mm
Height of bench surface 760mm
External size 1800x2300x2260mm
Central size 600mm
Motor power 5.5kw
Weight of machine tool 4.8T
